5701C8-IPS7-DVR-4AHD


-1-【Beautiful HD Image for YOU】The FCC Certificate 7" IPS monitor has a pixel resolution of 1024*600 and the image displayed a super sharp image. Real-time transmission of crystal clear image quality with stable signal and no display delays. IPS (in-plane-switching) technology ADVANTAGES: ▲ Improved Wider Viewing Angles; ▲ More Accurate Color Quality; ▲ Larger Color Gamut, Better Representation and Reproduction of Color; ▲ Better High Contrast Ratio.


-2- 【AHD 1080P Camera】The FCC Certificate 2 Million Pixels HD camera output 1920*1080 pixel real nature color high quality image without color deviation. Lens has 150 degree wide viewing angle. Super night vision is able to see up to 30FT even in complete darkness. And With 8 pcs White LEDs lights camera you could see even 50FT. See our Asin: B0B8XJGN1V and no LED: B0B8WKP5DT. We may deliver them together.


-3-【Widely Used】This rear view DVR system can work perfectly on wide voltage 9~40V and -22F-176F degrees, waterproof IP67 rating, includes four cables with waterproof conncetor cover, which using RG174 pure copper Coaxial cable equipped with Flame Retardant Tube, can effectively shield image interference such as water ripples. The cable working temperature range is -40F-230F.


-4-【DIY Installation & Accessories】We have supplied installation stuff, include vehicle Add-a-circuit Fuse TAP Adapter, Strape, Fuse Puller, Non-marring Wedges, Screws, Remote control. And easy to understand and comprehensive MANUAL. You could choose different length cable to suitable for heavy-duty and long vehicles, such as RV, motorhome, bus, cargo van, box truck, flatbed truck, bucket truck, tractor and school bus, etc. Cables see our Asin: B0B8WK469Q and B0B8XL2GNY.


-5- 【Rich Features】BOIN-E Recording and preview system support Circular Recording FIFO; Parking Lines; Image mirror; Guide-Line; Four cameras Trigger display; Recording and preview system Centralized power supply, when ACC OFF, Monitor and Cameras will power off to save battery power; Stop/Start Record manually. Support SD/TF Card 0/16/32G/64G128G.

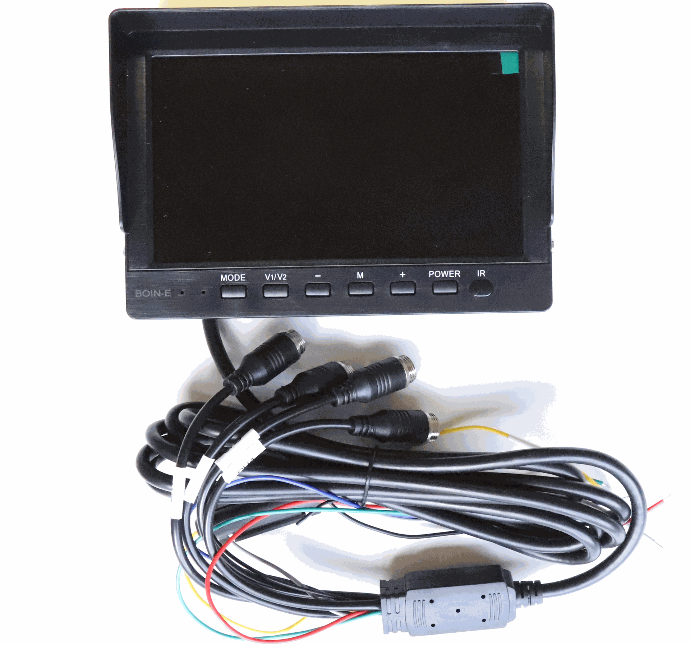

7" MONITOR SPECIFICATIONS

Monitor Certificate: FCC Number: CTE220700801101
Input voltage: DC 9V-40V
Input signal: Analog High-Defination AHD 1080P, 720P, CVBS
Screen resolution: 7 inches 1024*600
Signal system: PAL, NTSC automatic identification
Dual Channel Switching: AV1 channel is displayed by default, and AV2 channel has priority when hardware triggering
Key Function: MODE, AV1/AV2, DOWN, MENU, UP, POWER OSD
Adjustment: Brightness, Contrast, Saturation, Hue, Reverse Function, Flip, Mirror, On-Screen Display Mode, Language, Reset and other function settings
Storage Temperature and Humidity: -20℃ - +80℃, 90%RH (no condensation)


CAMERA SPECIFICATIONS

  1. Camera Sensor Type: 2 million pixels color image CMOS sensor
  2. Video Output Format: AHD 1080P (1920*1080) PAL/ 720P (1280*720) PAL 30FPS
  3. Reverse Scale Show: Enable / Disable
  4. Video Output Format: Switch Resolution 1080P/720P Function
  5. Photosensitive size: 1/2.7″
  6. Effective Pixels: 1920(H)x1080(V)
  7. Minimum Illumination: 0.5 Lux
  8. Working Voltage: DC 8V-24V
  9. Working Current: 120 mA without LED on
  10. Power: 0.27W
  11. Working temperature: -30℃~+85℃ (-22F-185F)
  12. Waterproof Rate: IP68
  13. Camera VideoTail-Cable: 1 Meter 3 Feet)
  14. Connector: M12 4PIN Output
  15. White Balance: Auto
  16. Automatic Gain Control AGC: Automatic
  17. Backlight Compensation: Yes
  18. Noise Reduction: 2D DNR, 3D DNR
  19. SNR: >52dB(AGC OFF)
  20. Video Out: 1.0 Vp-p / 75 ohms, Analog High-Definition image
  21. Reverse Scale Line: Show/Do not show
  22. Gamma Correction: 0.45
  23. Camera Certificate: FCC; Number: CTE22070801301
